Home /Products/Aluminum Electrolytic Capacitor/8000 Hours 450V 47uf 18*32mm DIP Aluminum Electrolytic Capacitor For Street Lighting

8000 Hours 450V 47uf 18*32mm DIP Aluminum Electrolytic Capacitor For Street Lighting

200.0 Pieces
MOQ
8000 Hours 450V 47uf 18*32mm DIP Aluminum Electrolytic Capacitor For Street Lighting
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Withstand High Temperature ,long Life
Model Number: CD11GC
Type: Aluminum Electrolytic Capacitor
Supplier Type: Original Manufacturer
Capacitance: 1.0uf~100uf
Tolerance: +-20%
Package Type: Through Hole
Rated Voltage: 140V~550V
Operating Temperature: -40℃~105℃
Applications: LED And Electronic Rectifier And So On
Current - Leakage: I<=0.02CV+40uA(2 Minutes)
Application: LED And Electronic Rectifier
Certificate: RoHS/CE/ISO9000
Load Life: 8000 Hours
Color: Optional
Size: Designed
PAYMENT: Paypal\TT\Western Union\Trade Assurance
Shipping Ways: DHL\UPS\Fedex\TNT\EMS\ARAMEX
Delivery Time: 3-5days
MOQ: 200pcs
Package: Ppbag +carton
Basic Infomation
Certification: RoHS/CE/ISO9000
Model Number: CD11GC
Payment & Shipping Terms
Packaging Details: PPbag +Carton outside or Braiding
Supply Ability: 600000000 Piece/Pieces per Month
Product Description
Product Description
Name
CD11GC Series Radial Aluminum electrolytic capacitor
Load life
Guaranteed 8,000 hrs at 105℃
Feature
High reliability, Long life, Smaller case size
Capacitance
1.0~100 μf
Tolerance
±20% (120Hz, +20℃)
Voltage
140V/160V/200V/250V/350V/400V/450V/500V
Operating Temperature
-40℃～+105℃
Application
Used for LED，Electronic rectifier，Fan ，Home Fixtures ，Flash Power Supply，Electronic equipment，Household appliances，Switching power
supply，Solar power，street lighting，Security power, UPS power supplies, Electronic vehicles, Routers, High-end audio, Telephones,
Inverters, Fast charging power supplies, Sockets, Smart meters, New energy solars, Car charging piles，Consumer electronics,
Communications, New energy, Automation control, Automotive industry, Optoelectronic products, high-speed railways, aviation,
military, power industry, medical industry,wind turbine
MOQ
200
Place of origin
China

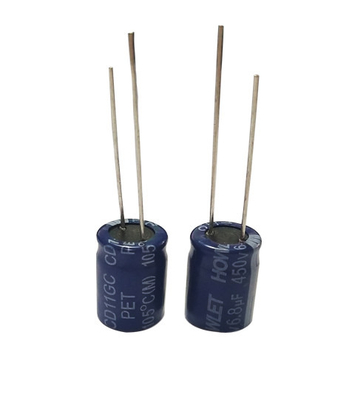

Product Picture Of DIP Aluminum Electrolytic Capacitor
Specifications of DIP Aluminum Electrolytic Capacitors
Standard Ratings of CD11GC Series DIP Aluminum Electrolytic Capacitors
WV
(Vdc)
Cap
(μ F)
Size
ΦD×L
(mm)
tanδ
Rated ripple Current
(mArms/105℃ 100kHz)
160
1.0
6.3×12
0.08
50
1.5
6.3×12
0.08
55
1.8
6.3×12
0.08
63
2.2
6.3×12
0.08
70
2.7
6.3×12
0.08
75
3.3
6.3×12
0.08
79
4.7
8×12
0.08
85
5.6
8×12
0.08
97
6.8
8×16
0.08
110
8.2
8×16
0.08
168
10
8×16
0.08
225
15
10×16
0.08
288
22
10×16
0.08
475
33
10×20
0.08
570
47
13×25
0.08
660
68
13×25
0.08
800
100
16×26
0.08
1120
200
1.0
6.3×12
0.08
55
1.5
6.3×12
0.08
63
1.8
6.3×12
0.08
70
2.2
6.3×12
0.08
75
2.7
6.3×12
0.08
80
3.3
6.3×12
0.08
92
4.7
8×12
0.08
125
5.6
8×12
0.08
135
6.8
8×16
0.08
150
8.2
8×16
0.08
170
10
8×16
0.08
225
15
10×16
0.08
375
22
10×16
0.08
505
33
13×20
0.08
600
47
13×20
0.08
625
68
16×26
0.08
860
100
16×26
0.08
1060
WV
(Vdc)
Cap
(μ F)
Size
ΦD×L
(mm)
tanδ
Rated ripple Current
(mArms/105℃ 100kHz)
250
1.0
6.3×12
0.08
55
1.5
6.3×12
0.08
63
1.8
6.3×12
0.08
70
2.2
6.3×12
0.08
80
2.7
6.3×12
0.08
88
3.3
6.3×12
0.08
100
4.7
8×12
0.08
135
5.6
8×12
0.08
150
6.8
8×16
0.08
160
8.2
8×16
0.08
170
10
8×16
0.08
240
15
10×16
0.08
380
22
10×16
0.08
475
33
13×20
0.08
570
47
13×20
0.08
648
68
16×26
0.08
875
100
16×32
0.08
1140
350
1.0
6.3×12
0.08
58
1.5
6.3×12
0.08
63
1.8
6.3×12
0.08
68
2.2
6.3×12
0.08
70
2.7
8×12
0.08
80
3.3
8×12
0.08
94
4.7
8×12
0.08
130
5.6
8×16
0.08
150
6.8
10×13
0.08
190
8.2
10×16
0.08
235
10
10×16
0.08
262
15
10×20
0.08
340
22
13×20
0.08
475
33
13×25
0.08
580
47
13×25
0.08
700
68
16×32
0.08
880
WV
(Vdc)
Cap
(μ F)
Size
ΦD×L
(mm)
tanδ
Rated ripple Current
(mArms/105℃ 100kHz)
400
1.0
6.3×12
0.08
65
1.5
8×12
0.08
78
1.8
8×12
0.08
83
2.2
8×12
0.08
85
2.7
8×12
0.08
92
3.3
8×12
0.08
105
4.7
8×12
0.08
110
5.6
10×13
0.08
155
6.8
10×13
0.08
200
8.2
10×16
0.08
252
10
10×16
0.08
288
15
10×20
0.08
368
22
13×25
0.08
530
33
16×26
0.08
608
47
16×26
0.08
680
68
18×32
0.08
900
WV
(Vdc)
Cap
(μ F)
Size
ΦD×L
(mm)
tanδ
Rated ripple Current
(mArms/105℃ 100kHz)
450
1.0
8×12
0.12
72
1.5
8×12
0.12
75
1.8
8×12
0.12
90
2.2
8×16
0.12
115
2.7
8×16
0.12
120
3.3
8×16
0.12
128
4.7
10×16
0.12
138
5.6
10×16
0.12
158
6.8
10×20
0.12
200
8.2
10×20
0.12
220
10
10×20
0.12
250
15
13×20
0.12
345
22
13×25
0.12
448
33
16×26
0.12
550
47
18×32
0.12
705
68
18×32
0.12
810
Catalogue Of DIP Aluminum Electrolytic Capacitors
Series
Features
Temperature Range(℃)
Endurance(Hours)
Rated Voltage(V)
Capacitance Range(μF)
TP-C
Long Life
-40~ +105
8000
140~500
1.0~47
TP-D
High Temperature, High Reliability
-40~ +125
3000
140~500
1.0~47
CD11GD
High Temperature, High Reliability
-40~ +125
1000~3000
140~500
1.0~100
CD11GC-A
High Temperature, High Reliability,Long Life
-40~ +135
2000
140~500
2.2~220
RG-A
High Temperature, High Ripple
-40~ +135
2000
10~120
1.0~4700
CD11GO
High Reliability, Ultra-long Life
-40~ +105
15000
140~500
1.0~100
CD11GA
High Reliability, Ultra-long Life
-40~ +105
12000
140~500
1.0~100
CD11GC
High Reliability, Long Life
-40~ +105
8000
140~500
1.0~100
CD11GL
Smaller Case Size, Long Life
-40~ +105/ -25 ~105
6000
140~500
1.0~100
CD11GL-A
High Reliability, Long Life
-40~ +105
6000
140~500
1.0~100
RF
High Frequency low impedance, High Ripple
-40~ +105
3000~6000
6.3~120
2.2~10000
RG
Ultra-low Impedance, Ultra-long Life
-40~ +105
6000~10000
10~120
2.2~8200
CD11GT
High Ripple, Long Life
-40~ +105/ -25 ~105
3000
140~500
1.0~68
CD11GS
High Ripple, Long Life
-40~ +105/ -25 ~105
6000
140~500
1.0~100
CD11GE
High Ripple, Ultra-long Life
-40~ +105
8000
140~500
1.0~100
CD294
High VOLT, high temperature,Low △T, Low ESR
-40~ +105
2000~4000
160~550
330~3300
CD294
High VOLT, high temperature,Low △T, Low ESR
-40~ +105
2000~4000
16~100
560~47000
WH
High Reliability
-40~ +105
2000
140~550
1.0~100
Company Introduction
Yiyang ZhongYu Technology Electronic Co. Ltd. is a professional manufacturer of high quality aluminum electronic capacitor, founded in 1998 and self-build workshop 8000 square meters. Our company is located in Longling electronic industrial park in Yiyang, known as the global town of capacitors. Annual production capacity of DIP aluminum electrolytic capacitor 1 billion pcs and snap-in aluminum electrolytic capacitor 10 million pcs.
Producing Department Of DIP Aluminum Electrolytic Capacitors
Why Choose Us
①,20+ years experience, 0.01% defective rate, highest quality product.
②,Forerunner automatic mechanical equipment , efficient production, fast delivery time.
③,We always 24 Hours on-line sale and after-sale, efficient reply.
④,OEM/ODM service, professional R&D department unrivalled capacity.
⑤,The most attractive price.
Certifications
Our company have 12 patents.
Our Company had achieved ISO9001 Quality Management System and ISO14001 Environmental Management System. All of our products are in compliance with the RoHS directive.
