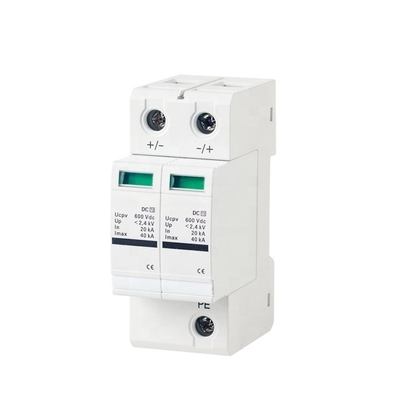

UL94-V0 Flame Retardant Plastics 2P SPD DC Surge Protector For Solar Power Generation System

10 Pieces
MOQ
$9.60(10 - 99 Pieces) $8.40(100 - 499 Pieces) $7.90(>=500 Pieces)
Price
UL94-V0 Flame Retardant Plastics 2P SPD DC Surge Protector For Solar Power Generation System
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DC40
Number Of Pole: 2
Rated Voltage: 1200v
Product Name: DC Surge Protective Device
Uc:: 500V-1500V
In(kA): 20
Imax(kA): 40
Response Time(ns): <25
Case Material: UL94-V0 Flame Retardant Plastics
Condition: 100% Original
Warranty: 1 Year
Color: Customized
Certificate: CE
Basic Infomation
Certification: CE
Model Number: DC40
Payment & Shipping Terms
Packaging Details: standard exporting carton or your requirement.
Product Description
Product Description
2P DC Surge Protector SPD for Solar Power Generation System
1.General
This series of surge protector device(SPD)is suitable for new energy solar power generation system, and the maximum continuous working voltage is DC500V, 800V, 1000V, 1200V. The installation position is in the DC power supply system to protect indirect lightning current, direct lightning current or other transient overvoltage.

2.Characteristic
2.1.Plug-in surge protector 2.2. The color of the visible window indicates the working status of the protector, green (normal), red (fault). 2.3. Double protection for hot-melt overcurrent. 2.4. Configure the remote signal interface to realize remote control.

3.Technical Parameter
Type
DC40 type SPD
Maximum continuous working voltage  Uc(V)
500
800
1000
1200
Nominal discharge current  In (kA)
20
Maximum discharge current Imax  (kA)
40
Voltage protection level  Uc(kA)
≤1.8
≤2.9
≤3.6
≤3.8
Response time  (ns)
<25
Minimum cross-sectional area of access wire L / N (mm2)
4
Minimum cross-section area of ground wire (mm2)
6
Selection of fuse or circuit breaker (A)
32
Installation
35mm standard Din Rail
Housing material
UL94-V0 grade flame retardant plastic

4.Size
Detailed Images
