Name: Professional Supplier Low MOQ And Current Display Relay Under Over Voltage Circuit Breaker YC9VA
Brand: Professional Supplier Low MOQ And Current Display Relay Under Over Voltage Circuit Breaker YC9VA
SKU: YC9VA
Rating: 4.6 (198 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: YC9VA

Type: Voltage Protection

Poles Number: 3

Rated Voltage: 230V

BCD Curve: C

Rated Frequency: 50HZ

Rated Power Supply Voltage: AC230V

Maximum Voltage Adjustment Range: 230V~300V

Minimum Voltage Adjustment Range: 120V~210V

Range Of Adjustment Of The Maximum Curre: 1A~63A

Maximum Action Time: <275V: 0,1s, â‰¥275V: 0,02s

Protection: IP20

Electrical Life: 100000 Times

Mechanical Life: 1000000 Times

Basic Infomation

Model Number: YC9VA

Payment & Shipping Terms

Packaging Details: CNC / OEM 100 units/ctn 46.3*31.2*31.8

Supply Ability: 50000 Unit/Units per Week

Product Description

Product Category

PRODUCT CATEGORIES

→ VIEW ALL

MODULAR DIN RAIL

DISTRIBUTION APPARATUS

MOTOR CONTROL PROTECTION

INDUSTRIAL CONTROL COMPONENTS

POWER ENERGY MANAGEMENT

WALL SWITCH

EXPLOSION-PROOF PRODUCTS

POWER ENERGY MANAGEMENT

Product Description

Professional Supplier Low MOQ And Current Display Relay Under Over Voltage Circuit Breaker

High precision Measuring voltage and measuring,Maximum current 63A

Product Detail

Rated power supply voltage	AC230V
Maximum voltage adjustment range	230V~300V
Minimum voltage adjustment range	120V~210V
Range of adjustment of the maximum curre	1A~63A
Maximum action time	<275V: 0,1s, ≥275V: 0,02s
Protection	IP20
Electrical life	100000 times
Mechanical life	1000000 times
Product Keywords	under voltage,voltage and current display relay,under over voltage circuit breaker

Description

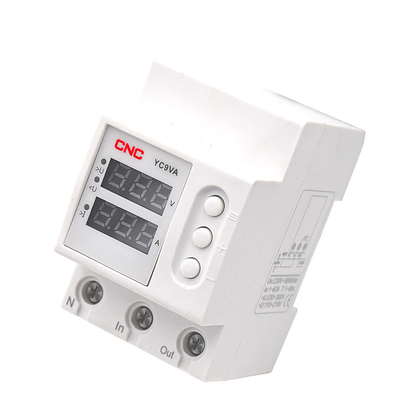

YC9VA voltage and current display relay is a microprocessor-based voltage monitoring device for single-phase AC networks toprotect electrical equipment from surge voltage. The device analyzes the main voltage and displays its current value on a digitalindicator. Load is switched by electromagnetic relay. The user can set the current voltage value and delay time through the button.The value is stored in non-volatile memory. Aluminum wires and copper wires can be used for connection.

Application

YC9VA voltage and current display relay used in administrative, industrial and residential buildings and has the function of protectingsingle-phase lines:

Surge protection;

Undervoltage protection;

Overvoltage protection;

Working under voltmeter mode.

CERTIFICATE

Strength proof

All our products are passed the inspection standards included CE,CB,INMETRO,TUV with 100% quality.

Packaging & Shipping

PACKAGE:

CNC OR OEM 1P 180UNITS/CTN 2P 90UNITS/CTN 3P 60UNITS/CTN 4P 45UNITS/CTN 42*26.5*23.4 cm 18kg/ctn

DELIVERY TIME:

7-18 days after payment ----delivery date should be decided according to production season and order quantity.
