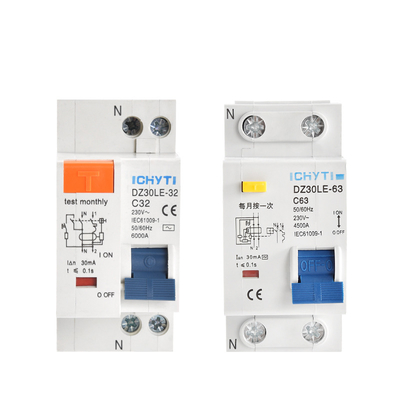

CHYT DZ30LE 1P+N AC 230V 32A 63A 30mA 4.5KA 6KA Mini Electric Earth Leakage RCCB Copper Residual Current Circuit Breaker

1.0 piece
MOQ
CHYT DZ30LE 1P+N AC 230V 32A 63A 30mA 4.5KA 6KA Mini Electric Earth Leakage RCCB Copper Residual Current Circuit Breaker
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: DZ30LE
Breaking Capacity: 6KA/4.5KA
Rated Voltage: 230VAC
Rated Current: 32A/63A
BCD Curve: C
Type: RCCB, Residual Current
Rated Frequency (Hz): 50/60Hz
Number Of Pole: 2
Product Name: Residual Current Circuit Breaker
Certificate: CCC CE
Pole: 1P+N
Standard: IEC61009
Material: Copper
Rated Residual Operating Current: 30mA
Rated Residual Non-operating Current: 15mA
Residual Current Off-time: ≤0.1S
Protection Degree: IP20
Basic Infomation
Certification: CCC CE
Model Number: DZ30LE
Payment & Shipping Terms
Supply Ability: 1000 Piece/Pieces per Day
Product Description
Product Description

Product introduction

DZ30LE leakage protective breaker, leakage protective breaker (phase wire+neutral wire+leakage+overload voltage)protective breaker is used in the single phase residence circuit of AC 50HZ/60HZ, rated voltage 220V, used as electron shock protection. It can protect civil electron circuit from over load and short-circuit. This product has advantages of small volume, high breaking capacity zero, and live wires are cutted off at the same time, also protecting person from electric shock when the livewire connected opposite.

Product features

1.The indicator window will turn to red when the RCBO trip off by earth leakage. 2.The indicator window won't turn to red by switching on the handle. 3.Residual current type: AC type. 4.This product conforms to IEC61009.

Warm reminder

Please noted the input MUST from TOP side, or will damage the product.
Specification
Product Model
DZ30LE-32
DZ30LE-63
Pole
1P+N
Rated Current (A)
10, 16, 20, 25, 32
40, 63
Rated Residual Operating Current(mA)
30
Rated Residual Non-operating Current (mA)
15
Rated Voltage (V)
230
Residual Current Off-time
≤0.1S
Short Circuit Capacity(lcu)
6000A
4500A
Testing Current (A)
Rated Voltage ( V )
Limited Time
Pre-engage Result
Start Situation
Note
1.13In
all
t≥1h
non-trip
cold state
The current rise steadily to a fixed value within 5s
1.45In
all
t<1h
trip
heat state

2.55In
all
1s<t<60s
trip
cole state
Open the supplementary switch , connect the power
5In
all
t≥0.1s
non-trip
cold state

10In
all
t<0.1s
trip
cole state

Details Images
Company Profile

ZHEJIANG YATAI INTELLIGENT ELECTRIC CO.,LTD is a professional solar PV electric components manufacturer located in Yueqing City, China. We're specialized in DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, MC4 connectors etc. Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We can assure you perfect quality and excellent service. We're looking forward to having a good-long term cooperaton with you and your company.
Packing & Delivery
FAQ
Q: why should you buy from us not from other suppliers?
A:The product specifications are complete, the variety is rich, and the company has more than ten years of production, research and development and sales experience. The company's team is young and energetic.
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 48hours.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
If you have another questions, pls feel free to contact us.
